DIGITAL ECHO MIC MIXER
SPECIFICATIONS:
Music section
Connector : 1/8" Unbalanced
Input Impedance : 20KΩ
Input Sensitivity : 300mV
T.H.D. : <0.01%
Frequency Response : 20Hz~20KHz –1dB
Noise Ratio : >90dB
Microphone section
Connector : 1/4” Unbalanced
Input Impedance : 1.5KΩ
Input Sensitivity : 1.5mV
T.H.D : <0.1%
Frequency Response : 40Hz~15KHz–3dB
Noise Ratio : >80dB
Digital Echo : Up to 600mS

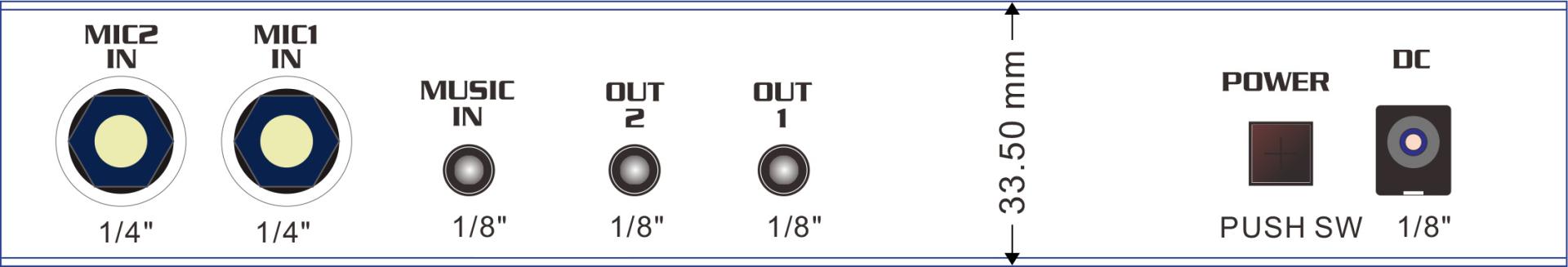

Dimension : 192mm (W) x86mm (D) x 33.5mm (H)
POWER : DC9V Adaptor.
OUTPUT1&2:
Connector : 1/8” Unbalanced
Output level : 0.775V/600Ω
